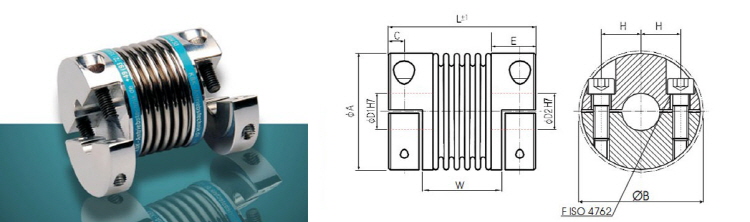

Miniature Metal Bellows Coupling
KB2H/5~100
| * Speed : | max. 15000 min-1 |
| * Hub : | Bore Tolerance : H7 Keyway acc. DIN 6885 optional |
| * Material | Bellows - Stainless Steel |
| Hub - Aluminium (also available in Stainless Steel) | |
| * Temperature range : | -30° ~ 120° |
| Order Example : | KB 2H / 45 - 50 - 10 - 16 - S |
| Type / Size Length L φD1(H7) φD2(H7) Option | |
