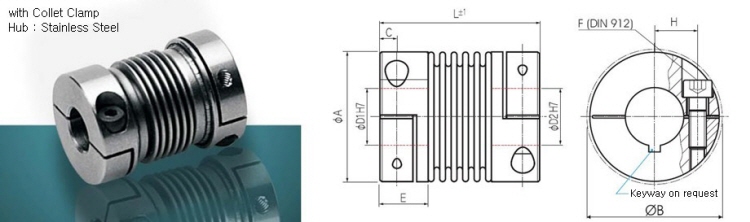

Miniature Metal Bellows Coupling
KB2VA/1~100

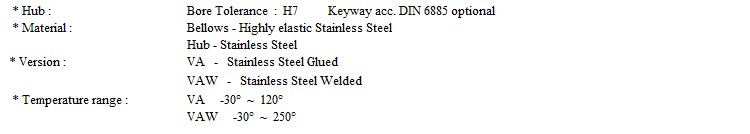

| * Hub : | Bore Tolerance : H7 Keyway acc. DIN 6885 optional |
| * Material : | Bellows - Highly elastic Stainless Steel |
| Hub - Stainless Steel | |
| * Version : | VA - Stainless Steel Glued |
| VAW - Stainless Steel Welded | |
| * Temperature range : | VA -30° ~ 120° |
| VAW -30° ~ 250° |
| Order Example : | KB 2 / 45 - 55 - 10 - 16 - VA / VAW |
| Type / Size Length L φD1(H7) φD2(H7) VA : Stainless Steel Glued | |
| VAW : Stainless Steel Welded |
