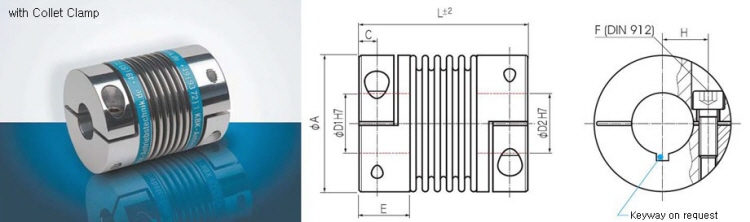

Metal Bellows Coupling

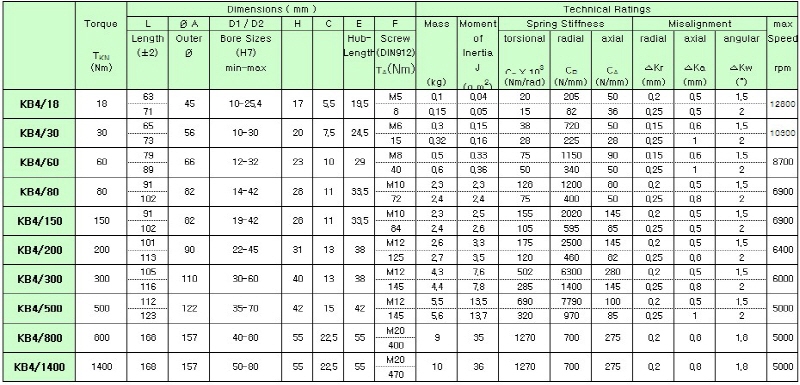

       KB4/18~1400



　

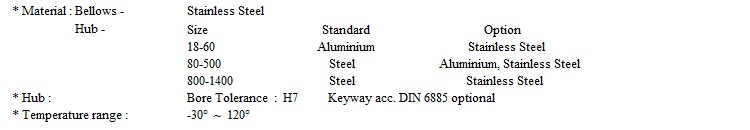

  * Material : Bellows - Stainless Steel
　                   Hub - Size                                      Standard                                      Option
  18-60                                  Aluminium                               Stainless Steel
  80-500                                    Steel                            Aluminium, Stainless Steel
   800-1400                                Steel                                     Stainless Steel
  * Hub : Bore Tolerance  :  H7          Keyway acc. DIN 6885 optional
  * Temperature range : -30°  ~  120°
 Order Example   :    KB 4   /   60        -        89        -        12        -        32        -        S
           Type / Size                    Length L             φD1(H7)             φD2(H7)             Option
