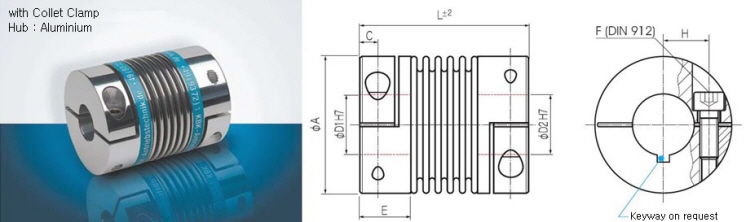

Metal Bellows Coupling
KB4AL/80~500

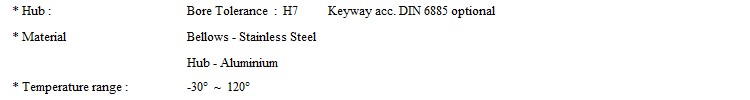

| * Hub : | Bore Tolerance : H7 Keyway acc. DIN 6885 optional |
| * Material | Bellows - Stainless Steel |
| Hub - Aluminium | |
| * Temperature range : | -30° ~ 120° |
| Order Example : | KB 4 AL / 80 - 91 - 15 - 20 - S |

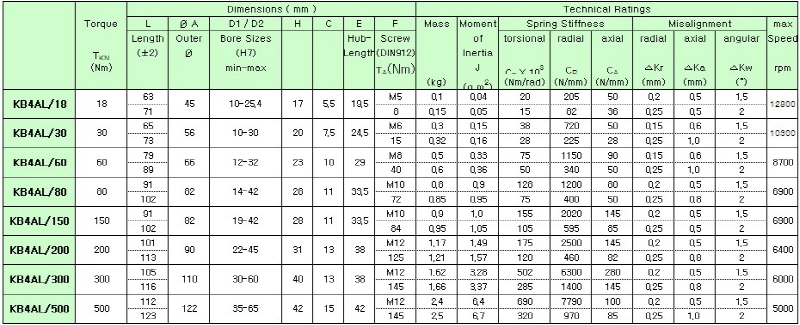

| Type / Size Length L φD1(H7) φD2(H7) Option | |
