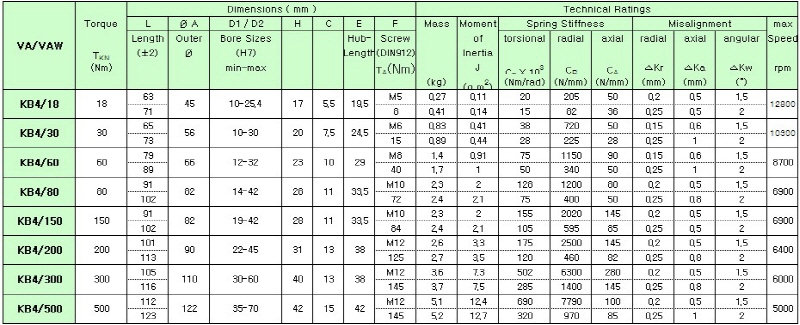

Metal Bellows Coupling

       KB4VA/18~500



　

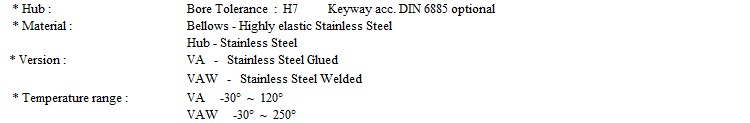

  * Hub : Bore Tolerance  :  H7          Keyway acc. DIN 6885 optional
  * Material : Bellows - Highly elastic Stainless Steel
　 Hub - Stainless Steel
 * Version : VA   -   Stainless Steel Glued
  VAW   -   Stainless Steel Welded
  * Temperature range : VA     -30°  ~  120°
VAW     -30°  ~  250°
 Order Example   :    KB 4   /   60        -        89        -        12        -        32        -        VA / VAW
           Type / Size                    Length L             φD1(H7)             φD2(H7)            VA : Stainless Steel Glued
                                                                                                      VAW : Stainless Steel Welded
