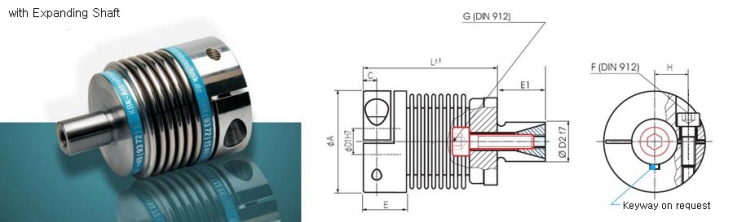

Metal Bellows Coupling

       KB8/18~300



　

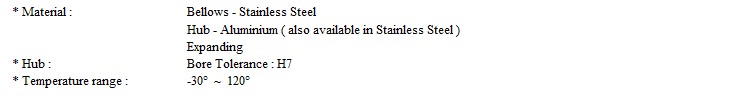

  * Material : Bellows - Stainless Steel
　 Hub - Aluminium ( also available in Stainless Steel )
  Expanding
  * Hub : Bore Tolerance : H7
  * Temperature range : -30°  ~  120°
 Order Example   :    KB 8   /   30        -        53        -        15        -        20        -        S

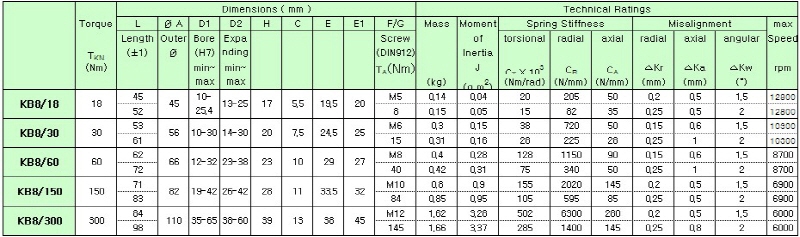

           Type / Size                    Length L             φD1(H7)             φD2(H7)            Options
