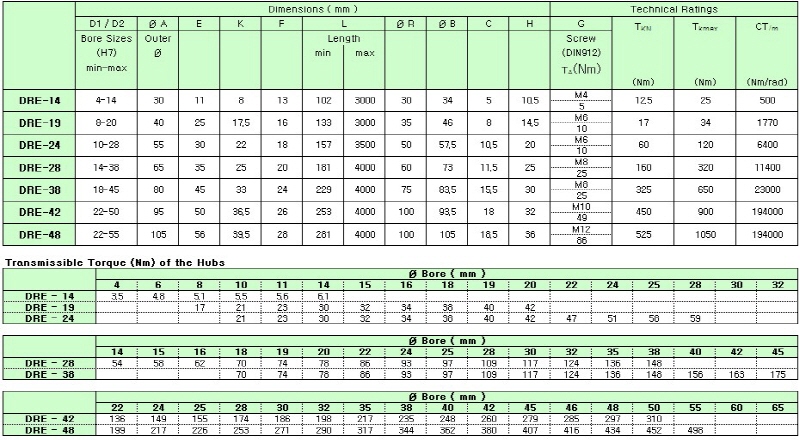

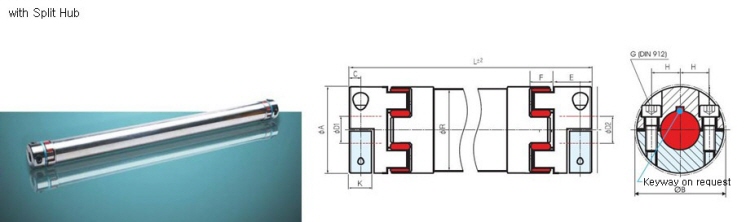

Line Shafts Coupling

       DRE/14~48



　

  * Material : Elastomer - Polyurethan 98 sh A( red )
　 Hub - Aluminium ( also available in Stainless Steel )
  Shaft - (DRE/14, DRE/19, DRE/24, DRE/28, DRE/38) - Aluminium
               (DRE/42, DRE/48) - Steel
  * Hub : Bore Tolerance : H7          Keyway acc. DIN 6885 optional
 Order Example   :    DRE    /   19        -         2000         -        10        -        16        -        S
           Type / Size                         Length L                 φD1(H7)             φD2(H7)            Options
