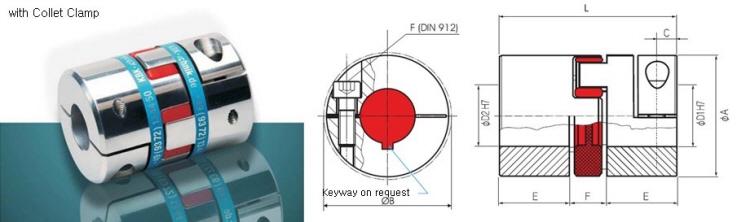

Elastomer Coupling
KBE2/7~48

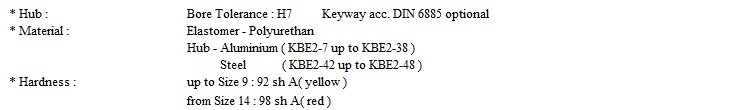

| * Hub : | Bore Tolerance : H7 Keyway acc. DIN 6885 optional |
| * Material : | Elastomer - Polyurethan |
| Hub - Aluminium ( KBE2-7 up to KBE2-38 ) | |
| Steel ( KBE2-42 up to KBE2-48 ) | |
| * Hardness : | up to Size 9 : 92 sh A( yellow ) |
| from Size 14 : 98 sh A( red ) |
| Order Example : | KBE 2 - 14 - 10 - 12 - S |
| Type Size φD1(H7) φD2(H7) Options | |
