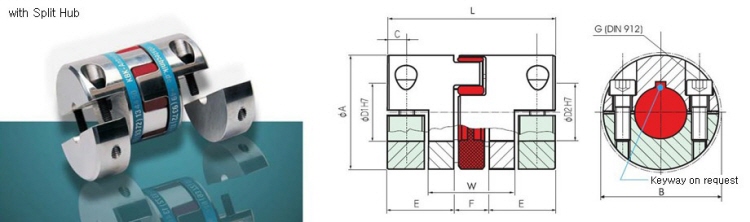

Elastomer Coupling
KBE2H/19~48
| * Hub : | Bore Tolerance : H7 Keyway acc. DIN 6885 optional |
| * Material : | Elastomer - Polyurethan |
| Hub - Aluminium | |
| * Hardness : | 98 sh A ( red ) |
| Order Example : | KBE 2H - 19 - 10 - 12 - S |
| Type Size φD1(H7) φD2(H7) Options | |
