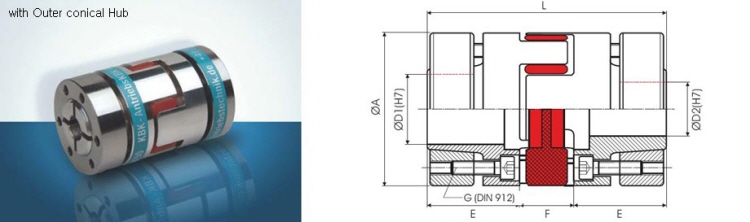

Elastomer Coupling
KBE3/14~65
| * Material : | Elastomer - Polyurethan 98 Sh A ( red ) |
| Hub - ( KBE3-14, KBE3-19, KBE3-24, KBE3-28, KBE3-38, KBE3-42 ) - Aluminium | |
| ( KBE3-48, KBE3-55 , KBE3-65) - Steel |

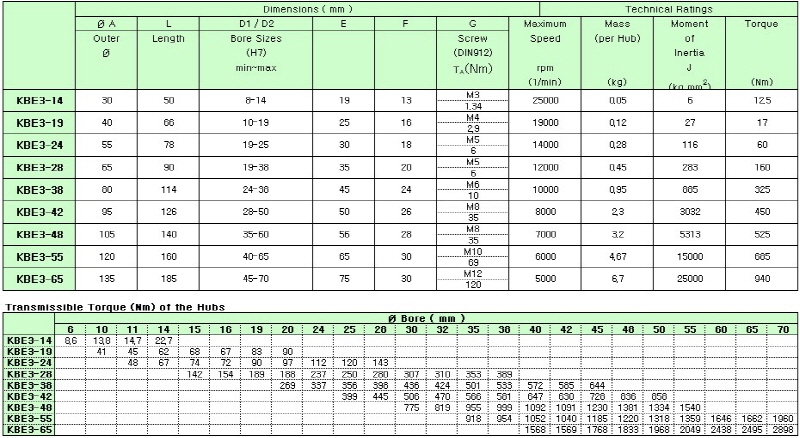

| Order Example : | KBE 3 - 48 - 40 - 35 - S |
| Type Size φD1(H7) φD2(H7) Options | |
