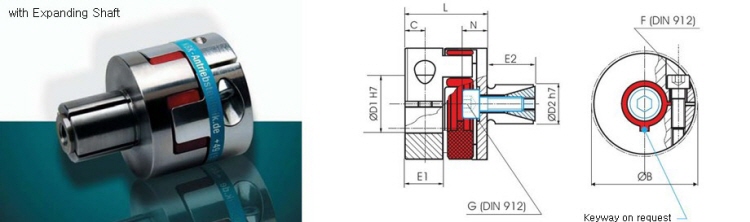

Elastomer Coupling
KBE4/19~38
| * Hub : | Bore Tolerance : H7 |
| * Material : | Elastomer - Polyurethan 98 Sh A ( red ) |
| Hub - Aluminium | |
| Expanding Hub - Steel |
| Order Example : | KBE 4 - 38 - 40 - 38 - S |

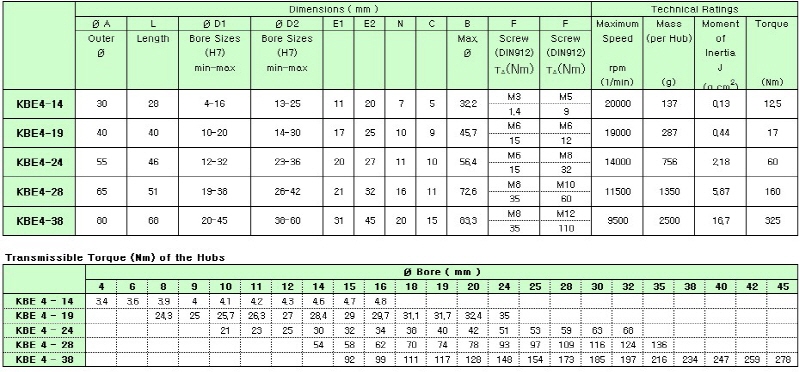

| Type Size φD1(H7) φD2(H7) Options | |
