Locking Device

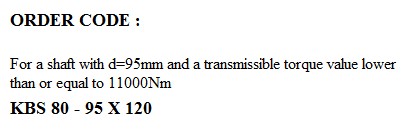

| ORDER CODE : |
| For a shaft with d=95mm and a transmissible torque value lower than or equal to 11000Nm |
| KBS 80 - 95 X 120 |
KBS 80 |
| Recommended machining tolerances: |
| shaft h 8 |
| Hub H 8 |
Locking Device
| ORDER CODE : |
| For a shaft with d=95mm and a transmissible torque value lower than or equal to 11000Nm |
| KBS 80 - 95 X 120 |
|
KBS 80 |
| Recommended machining tolerances: |
| shaft h 8 |
| Hub H 8 |
