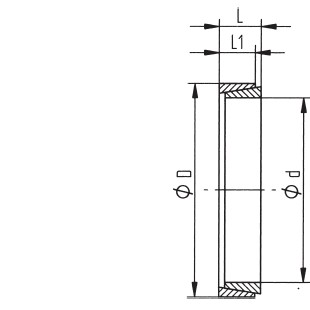

Locking Device - Locking Element

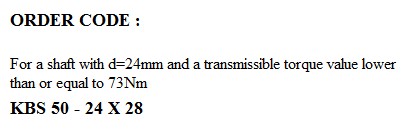

| ORDER CODE : |
| For a shaft with d=24mm and a transmissible torque value lower than or equal to 73Nm |
| KBS 50 - 24 X 28 |
KBS 50 |
| Recommended machining tolerances: |
| shaft h 8 |
| Hub H 8 |
Locking Device - Locking Element
| ORDER CODE : |
| For a shaft with d=24mm and a transmissible torque value lower than or equal to 73Nm |
| KBS 50 - 24 X 28 |
|
KBS 50 |
| Recommended machining tolerances: |
| shaft h 8 |
| Hub H 8 |
