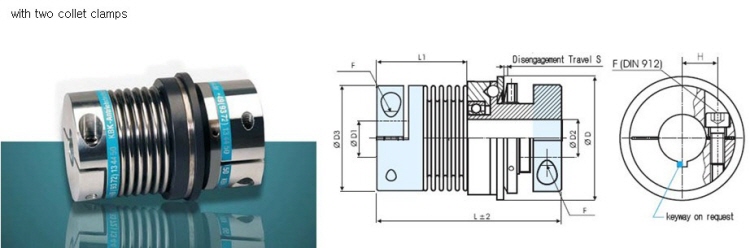

Safety Coupling ( Torque Limiter )

       KBK/BKK



　

  * Hub Bore Tolerance : H7 keyway acc. DIN 6885 optional
  * Material : Bellows - Stainless Steel
Hub - (KBK/BKK2, KBK/BKK4.5, KBK/BKK7, KBK/BKK10, KBK/BKK30, KBK/BKK60) - Aluminium
Hub - (KBK/BKK80, KBK/BKK150, KBK/BKK200, KBK/BKK300, KBK/BKK500) - Steel
  * Temperature range : -30°  ~  120°
 Order Example   :  KBK / BKK - 60   -   105   -   16H7   -   14H7   -     20Nm     -     C or D     -   1
              Type / Size              Length     φD1(H7)       φD2(H7)   Disengagement   C=Single Position   Option
                                                                                    Torque            D=Multi Position
