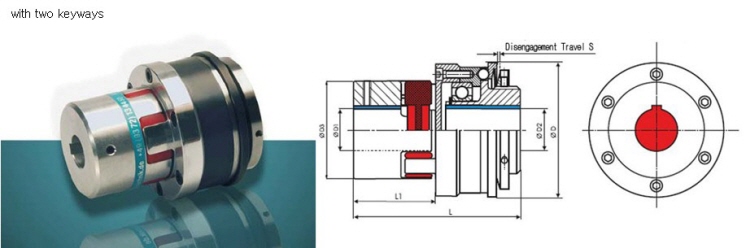

Safety Coupling ( Torque Limiter )

       KBK/EPP



　

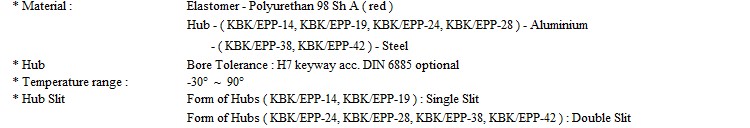

  * Material : Elastomer - Polyurethan 98 Sh A ( red )
  Hub - ( KBK/EPP-14, KBK/EPP-19, KBK/EPP-24, KBK/EPP-28 ) - Aluminium
          - ( KBK/EPP-38, KBK/EPP-42 ) - Steel
  * Hub Bore Tolerance : H7 keyway acc. DIN 6885 optional
  * Temperature range : -30°  ~  90°
  * Hub Slit Form of Hubs ( KBK/EPP-14, KBK/EPP-19 ) : Single Slit
  Form of Hubs ( KBK/EPP-24, KBK/EPP-28, KBK/EPP-38, KBK/EPP-42 ) : Double Slit
 Order Example   :  KBK / EPP - 24   -   15H7   -   18H7   -     20Nm     -     C or D     -   2
              Type / Size            φD1(H7)       φD2(H7)   Disengagement   C=Single Position   Option
                                                                     Torque            D=Multi Position
