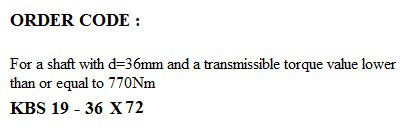

Locking Device - Shrink Disc
| ORDER CODE : |
| For a shaft with d=36mm and a transmissible torque value lower than or equal to 770Nm |
| KBS 19 - 36 X 72 |
KBS 19 |
| Recommended machining tolerances: |
| shaft h 9 |
Locking Device - Shrink Disc
| ORDER CODE : |
| For a shaft with d=36mm and a transmissible torque value lower than or equal to 770Nm |
| KBS 19 - 36 X 72 |
|
KBS 19 |
| Recommended machining tolerances: |
| shaft h 9 |

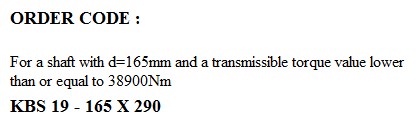

Locking Device - Shrink Disc
| ORDER CODE : |
| For a shaft with d=165mm and a transmissible torque value lower than or equal to 38900Nm |
| KBS 19 - 165 X 290 |
|
KBS 19 |
| Recommended machining tolerances: |
| shaft h 9 |
